THREE-WAY ANGULAR OMNI MACHINE VICE

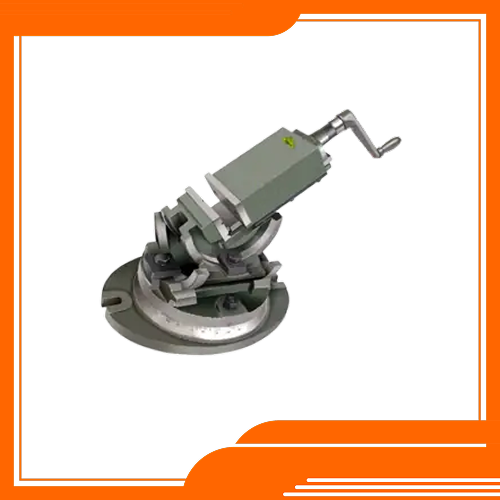

AJ-203 THREE-WAY ANGULAR OMNI MACHINE VICE
Features:
- BODY IS MADE OF GREY CAST IRON
- SWIVEL RANGE 360 DEGREE AROUND BASE
- TILTING RANGE 90 DEGREE VERTICAL TO HORIZONTAL AND 45 DEGREE FROM CENTRE TO SIDE
- VICE TOP FACE IS GROUNDED ACCURATELY TO FACILITATE USE OF MAGNETIC TOOL HOLDER AND OTHER ACCESSORIES
- THIS VICE CAN BE SETUP AT ANY ANGLE WITH A LOCKING SYSTEM
- HARDENED AND GROUNDED JAW WITH GROOVE PROVIDED WITH “V” SHAPE
- IDEAL USE FOR DRILLING AND MILLING OPERATIONS AT ANY ANGLE
- PROVIDED REMOVABLE HARDENED STEEL JAW
- FITTED WITH THRUST BEARING FOR SMOOTH MOVEMENT
| SIZE | Max jaw opening | WEIGHT | Master Carton | |
|---|---|---|---|---|
mm | MM | kg | ||
50 MM | 50 | 4 | 2 | |
75 MM | 75 | 10 | 2 | |
100 MM | 100 | 22 | 1 | |
125 MM | 125 | 36 | 1 | |
150 MM | 150 | 50 | 1 | |
