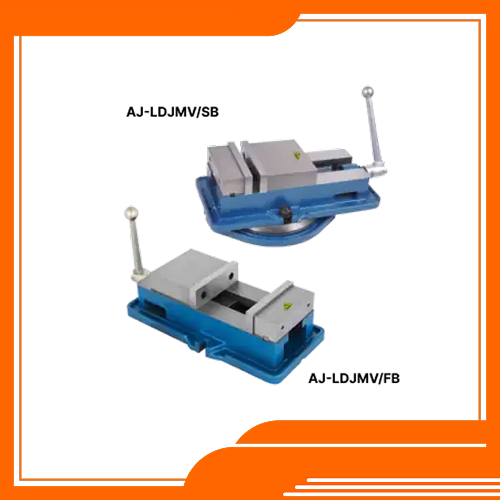

LOCK DOWN JAW MACHINE VICE (FIXED/SWIVEL BASE)
AJ-LDJMV/SB – AJ-LDJMV/FB LOCK DOWN JAW MACHINE VICE (FIXED/SWIVEL BASE)
Features:
- The Kurt Type Machine Vice is a high-performance vice for work holding and assembly operations.
- The Tilt Lock Machine Vice is fitted with a Thrust Bearing for Smooth Movement. Unique Tilt Lock Vices can withstand heavy jobs.
- Top & Bottom of vice bed, bottom & both sides of jaws & all jaw mounting surfaces are precision ground. By reversing the jaw plates, the jaws are raised & can be fitted to both ends of the fixed jaws & the movable jaws.
- The four different positions of the jaw plate pair are available for a larger gripping area.
- The vice can be disassembled and repaired by regrinding & also be made from SG cast iron body.
| SIZE | Max jaw opening | WT. KGS | Master Carton | |
|---|---|---|---|---|
mm | MM | Fix Base | Swivel Base | |
110 MM | 150 | 18 | 22 | 1 |
125 MM | 125 | 21 | 29 | 1 |
160 MM | 155 | 35 | 43 | 1 |
160 MM | 205 | 40 | 50 | 1 |
210 MM | 250 | 50 | 60 | 1 |
210 MM | 300 | 65 | 80 | 1 |
