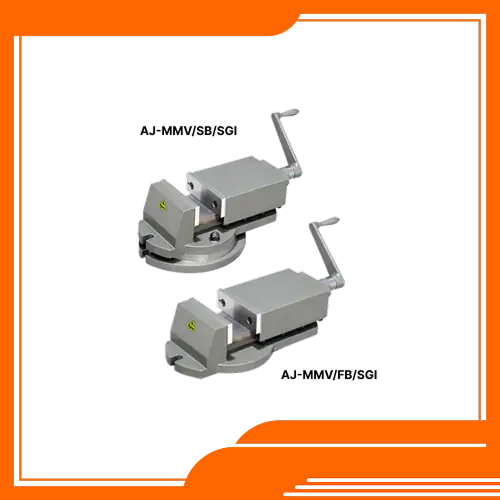

MILLING MACHINE VICE (FIXED/SWIVEL BASE)
AJ-MMV/FB/SGI – AJ-MMV/SB/SGI MILLING MACHINE VICE (FIXED/SWIVEL BASE)
Features:
- Made from SG iron body
- The jaws are made of precision-ground, hardened, and tempered steel plates for a reliable grip
- The vice features a swivel base that rotates 360 degrees, allowing the workpiece to be set at any desired compound angle.
- The design is totally enclosed to prevent foreign matter from damaging the screw and nut mechanism.
- It is suitable for use on universal and vertical milling machines.
| SIZE | Max jaw opening | WT. KGS | Master Carton | |
|---|---|---|---|---|
mm | MM | FIX BASE | SWIVEL BASE | |
50 MM | 50 | 2.7 | 3.6 | 2 |
75 MM | 75 | 5.3 | 7 | 1 |
100 MM | 100 | 11.5 | 16 | 1 |
125 MM | 125 | 17 | 21 | 1 |
150 MM | 150 | 26 | 35 | 1 |
200 MM | 200 | 50 | 62 | 1 |
