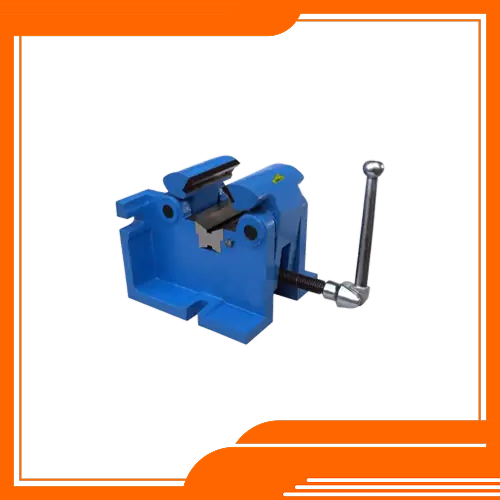

SELF-CENTERING SHAFT VICE
AJ-SCSV SELF-CENTERING SHAFT VICE
Features:
- The self-centring vice allows for the accurate centring of round jobs automatically.
- Centring Vices are constructed to hold bars and tubes in a firm concentric grip. They feature 4-point clamping contact, so workpieces are held securely without hard clamping, which can result in damage to delicate parts.
- The Vice is precisely manufactured of the highest quality material, has an accuracy of parallelism of .006″ per ft.
- The supporting tool steel V – Block is hardened and ground and is reversible to accommodate a wide range of diameters.
| SIZE | Max jaw opening | Weight | Master Carton |
|---|---|---|---|
mm | MM | KGS | |
80 MM | 10-50 | 18 | 1 |
100 MM | 10-80 | 20 | 1 |
150 MM | 50-150 | 50 | 1 |
