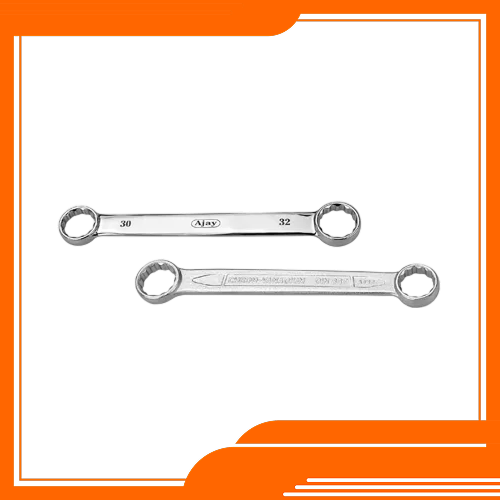

A-105 Double Ended Ring Spanner (Din 837, Iso 3318)

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Double-Ended Ring Spanner (Din 837, Iso 3318)

A-105 Double-Ended Ring Spanner (Din 837, Iso 3318)

Features:

Drop Forged Made from Chrome Vanadium Steel 31 CrV 3
Elliptical Model Full Poished/ Cold Pressed
Chrome Plated/ Satin Finish

MM	Length MM	Weight Kg.	Packing Master Cartons
06 x 07	95	0.012	1800
08 x 09	110	0.020	1000
10 x 11	125	0.030	700
12 x 13	140	0.050	400
14 x 15	156	0.060	400
16 x 17	170	0.060	400
17 X 19	180	0.095	250
18 x 19	180	0.090	250
20 x 22	200	0.138	150
21 x 23	220	0.157	150
24 x 26	272	0.290	80
24 x 27	272	0.290	80
25 x 28	270	0.285	80
30 x 32	305	0.405	50

Set in mm Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
6	6×7, 8×9, 10×11, 12×13, 14×15, 16x17MM			0.232	100
8	6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20x22MM			0.460	50
12	6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×26, 25×28, 30x32MM			1.597	12
