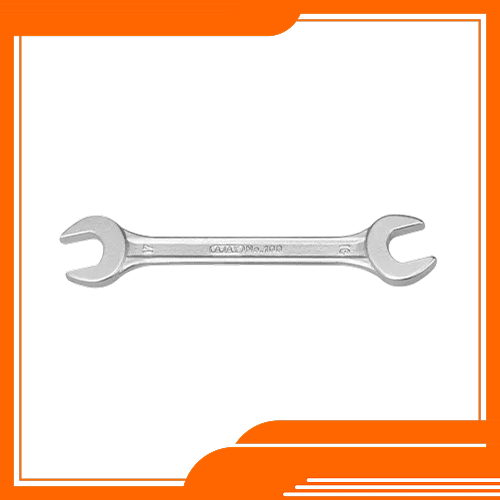

A-100 Double Open End Spanner Short Pattern

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Double Open End Spanner Short Pattern

A-100 Double Open End Spanner Short Pattern

Features:

Carbon Steel/Chrome Vanadium Steel 31 Crv 3
Drop Forged, Matt Finished/polished Head
Hardened and Tempered
Chrome Plated/Zinc Plated/Black Finished/Satin Finished
Generally Conforming to IS: 2028-1981

MM	Size SAE	WW	Length MM	Weight Kg.	Packing Master Cartons
5.5 x 07			95	0.015	1500
06 x 07	1/4 x 5/16		95	0.016	1400
07 x 08		1/16 x 3/32	95	0.020	1000
08 x 09	5/16 x 11/32		100	0.022	1000
08 x 10	5/16 x 13/32		100	0.025	800
09 x 11			110	0.035	600
10 x 11	3/8 x 7/16	1/8 x 3/16	110	0.029	800
10 x 12			110	0.045	500
12 x 13	7/16 x 1/2	3/16 x 1/4	128	0.047	500
12 x 14			128	0.055	400
14 x 15	1/2 x 9/16	1/4×5/16	146	0.075	300
14 x 17			162	0.090	250
16 x 17	19/32 x 11/16	5/16 x 3/8	162	0.089	250
17 x 19		5/16 x 7/16	182	0.120	200
18 x 19	5/8 x 3/4	3/8 x 7/16	182	0.117	200
19 x 22	3/4x 7/8		200	0.143	150
20 x 22	25/32x 7/8, 13/16x 7/8		200	0.143	150
21 x 23			212	0.175	120
22 x 24	7/8 x 5/16	7/16 x 9/16	212	0.195	100
24 x 26	15/16 x 1	1/2 x 9/16	222	0.228	100
24 x 27			222	0.239	100
25 x 28	1 x 1.1/8		232	0.241	100
24 x 30			236	0.300	80
27 x 30	1-1/16 x 1-1/8		250	0.330	60
27 x 32	1-1/16 x 1-1/4	5/8 x 3/4	250	0.350	60
30 x 32	1-1/8 x 1-1/4	9/16 x 11/16	250	0.351	60

Sets in mm Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
6	6×7, 8×9, 10×11, 12×13, 14×15, 16x17MM			0.278	80
8	6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20x22MM			0.538	40
10	6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24x26MM			0.941	24
12	6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×26, 25×28, 30x32MM			1.533	12

Sets in SAE Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
5	1/4 x 5/16,3/8×7/16,1/2×9/16,19/32×11/16,5/8×3/4”			0.350	60
6	1/4 x 5/16,3/8×7/16,1/2×9/16,19/32×11/16,5/8×3/4,25/32×7/8”			0.515	40
6	5/16×11/32,3/8×7/16,1/2×9/16,19/32×11/16,5/8×3/4,13/16×7/8”			0.520	40
10	1/4 x 5/16,5/16×11/32,3/8×7/16,1/2×9/16,19/32×11/16, 5/8×3/4,25/32×7/8,15/16×1,1×1.1/8, 1.1/16×1.1/4”			1.420	16

Sets in WW Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
A-100W3.5	10×11,14×17,19×22,3/16×1/4ww, 3/8×5/16ww			0.375	60
A-100WL	19×22,3/16×1/4ww,3/8×5/16ww,1/2×7/16ww,9/16×5/8ww			0.550	40
A-100WP	14×17,19×22,3/16×1/4ww,3/8×5/16ww,7/16×9/16ww			0.710	40
A-100W09	1/8×3/16ww, 3/16×1/4ww, 1/4×5/16ww, 5/16×3/8ww, 3/8×7/16ww, 7/16×1/2ww, 1/2×9/16ww, 9/16×5/8ww, 5/8×3/4ww			1.420	16
