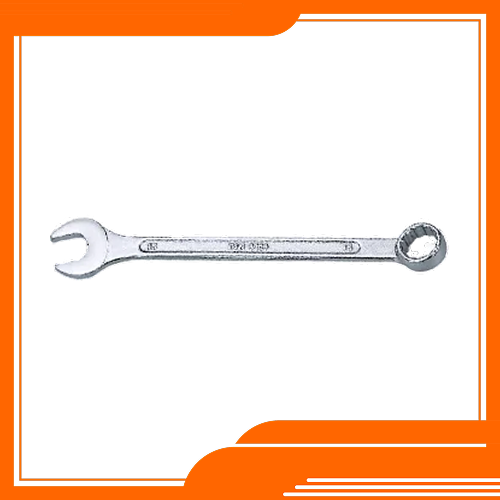

A-107 Combination Spanner (Din 3113 From A, Iso 3318)

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Combination Spanner (Din 3113 From A, Iso 3318)

A-107 Combination Spanner (Din 3113 From A, Iso 3318)

Features:

Drop Forged Made from Carbon Steel 31 CRV 3
Hardened & Tempered, Matt Finish/ Polished Head
Chrome Plated/ Zinc Plated/ Satin Finish

MM	Size SAE	WW	Length MM	Weight Kg.	Packing Master Cartons
6	1/4		100	0.015	1500
7		1/16	110	0.020	1000
8	5/16	3/32	120	0.025	800
9	11/32	1/8	130	0.030	700
10	3/8		140	0.038	500
11	7/16		150	0.040	500
12		3/16	160	0.050	400
13	1/2		170	0.060	400
14	9/16	1/4	180	0.075	300
15	19/32		190	0.082	250
16	5/8	5/16	200	0.100	200
17	11/16		210	0.115	200
18		3/8	220	0.124	150
19	3/4		230	0.150	150
20			240	0.187	120
21	13/16	7/16	250	0.210	100
22	7/8		260	0.217	80
23			270	0.260	80
24	15/16	1/2	280	0.278	80
25	1		290	0.310	80
26		9/16	300	0.340	60
27	1.1/16		310	0.390	60
28	1.1/8	5/8	305	0.430	50
29			320	0.475	50
30		11/16	325	0.480	50
32	1.1/4	3/4	345	0.550	40

Set in mm Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
5	8, 10, 12, 14, 17MM			0.303	72
6	8, 10, 12, 13, 14, 17MM			0.360	60
8	8, 9, 10, 11, 13, 14, 17, 19MM			0.530	40
8	6, 8, 10, 11, 13, 14, 17, 19MM			0.520	40
8	6,8,10,12,13,14,17,19 MM
9	6, 8, 10, 11, 12, 13, 14, 17, 19MM			0.540	40
10	6, 8, 10, 12, 13, 14,15, 17, 19,22 MM
11	6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM			0.616	40
12	6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM			0.886	24
12	6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22 MM
14	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 22MM			1.092	20
22	6, 7, 8, 9, 10,10, 11, 12, 13,13, 14, 15, 16, 17, 18, 19, 21, 22, 24,27, 30, 32 MM			3.750	6
25	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32MM			4.642	4
26	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32MM			5.117	4

Set in SAE Sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
5	3/8,7/16,1/2,9/16,5/8			0.313	60
11	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8			1.045	16
12	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8, 1			1.355	12
14	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8,15/16, 1, 1.1/4			2.183	8
