A-108 Combination Spanner (Elliptical Model) Din 3113 From A, Iso 3318

Looking for pricing, minimum order quantity, or delivery timelines? Share your requirement with us and our team will get back to you with complete product details and the best possible quote.

Product Description

Combination Spanner (Elliptical Model) Din 3113 From A, Iso 3318

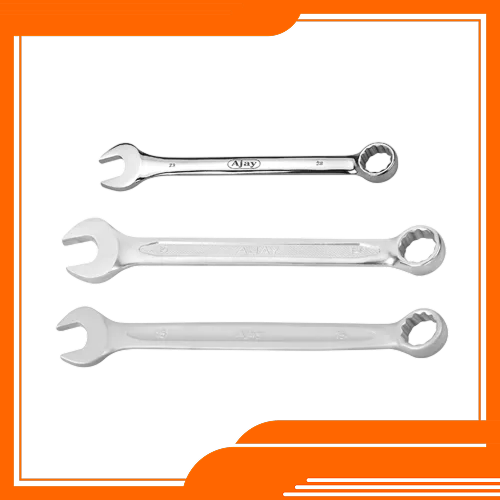

A-108 Combination Spanner (Elliptical Model) Din 3113 From A, Iso 3318

Features:

Drop Forged Made from Chrome Vanadium Steel 31 CrV 3
Elliptical Model Full Polished/ Cold Pressed Model
Chrome Plated/ Satin Finish
Also available in Cold Stamped

MM	Size SAE	WW	Length MM	Weight Kg.	Packing Master Cartons
6	1/4		100	0.019	1200
7		1/16	100	0.020	1000
8	5/16	3/32	100	0.030	800
9		1/8	100	0.035	600
10	3/8		100	0.042	500
11	7/16		100	0.050	400
12		3/16	100	0.058	400
13	1/2		100	0.066	300
14	9/16	1/4	100	0.080	300
15			100	0.090	250
16	5/8	5/16	100	0.110	250
17	11/16		100	0.130	150
18		3/8	100	0.138	150
19	3/4		100	0.160	150
20			100	0.175	120
21	13/16	7/16	100	0.215	100
22	7/8		100	0.230	100
23			100	0.250	80
24	15/16	1/2	100	0.265	80
25	1		100	0.335	60
26		9/16	100	0.360	60
27	1.1/16		100	0.400	60
28	1.1/8	5/8	100	0.415	60
29			100	0.450	40
30		11/16	100	0.475	40
32	1.1/4	3/4	100	0.570	40

Set in mm sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
5	8, 10, 12, 14, 17MM			0.340	60
6	8, 10, 12, 13, 14, 17MM			0.406	50
8	8, 9, 10, 11, 13, 14, 17, 19MM			0.616	40
8	6, 8, 10, 11, 13, 14, 17, 19MM			0.577	40
8	6,8,10,12,13,14,17,19 MM			0.585
9	6, 8, 10, 11, 12, 13, 14, 17, 19MM			0.635	40
10	6, 8, 10, 12, 13, 14,15, 17, 19,22 MM			0.905
11	6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19MM			0.690	30
12	6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22MM			0.920	24
12	6, 8, 9, 10, 11, 12, 13, 14, 15, 17, 19, 22 MM			0.990
14	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 17, 18, 19, 22MM			1.148	20
22	6, 7, 8, 9, 10,10, 11, 12, 13,13, 14, 15, 16, 17, 18, 19, 21, 22, 24,27, 30, 32 MM			3.291	6
25	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32MM			4.718	4
26	6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32MM			5.168	4

Set in SAE sizes

No. of Pcs	Sizes			Weight Kg.	Qty/Carton
5	3/8,7/16,1/2,9/16,5/8			0.348	50
11	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8			1.132	16
12	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8, 1			1.467	12
14	1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8,15/16, 1, 1.1/4			2.302	8
